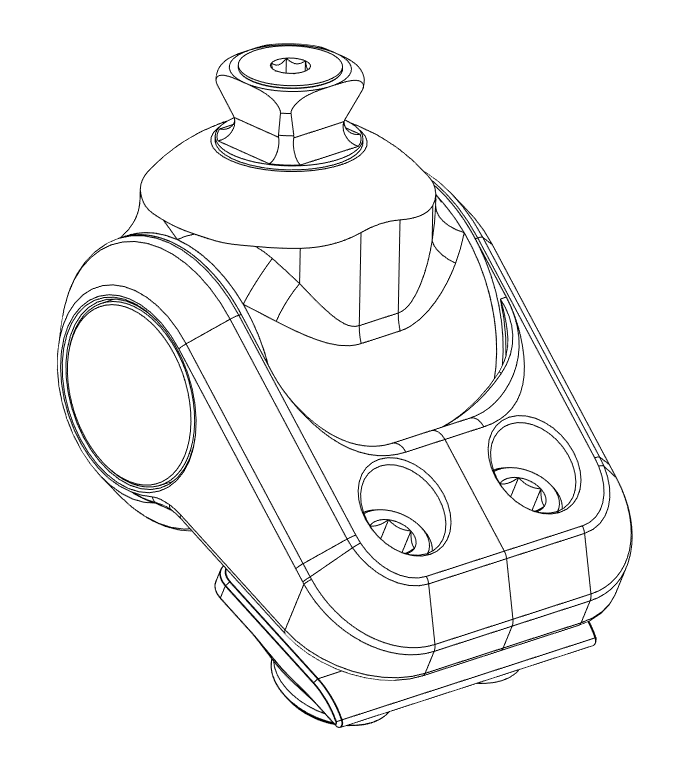

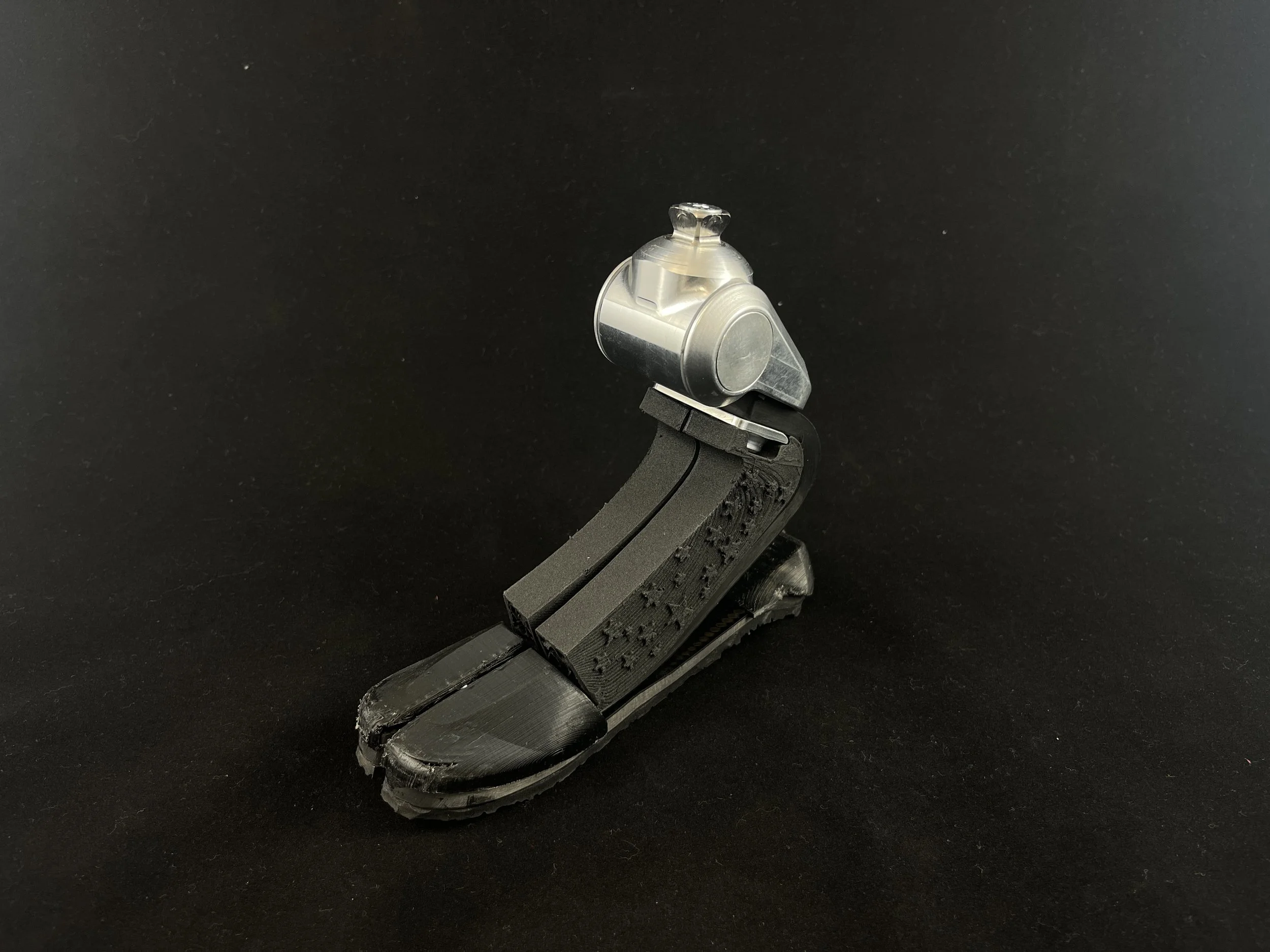

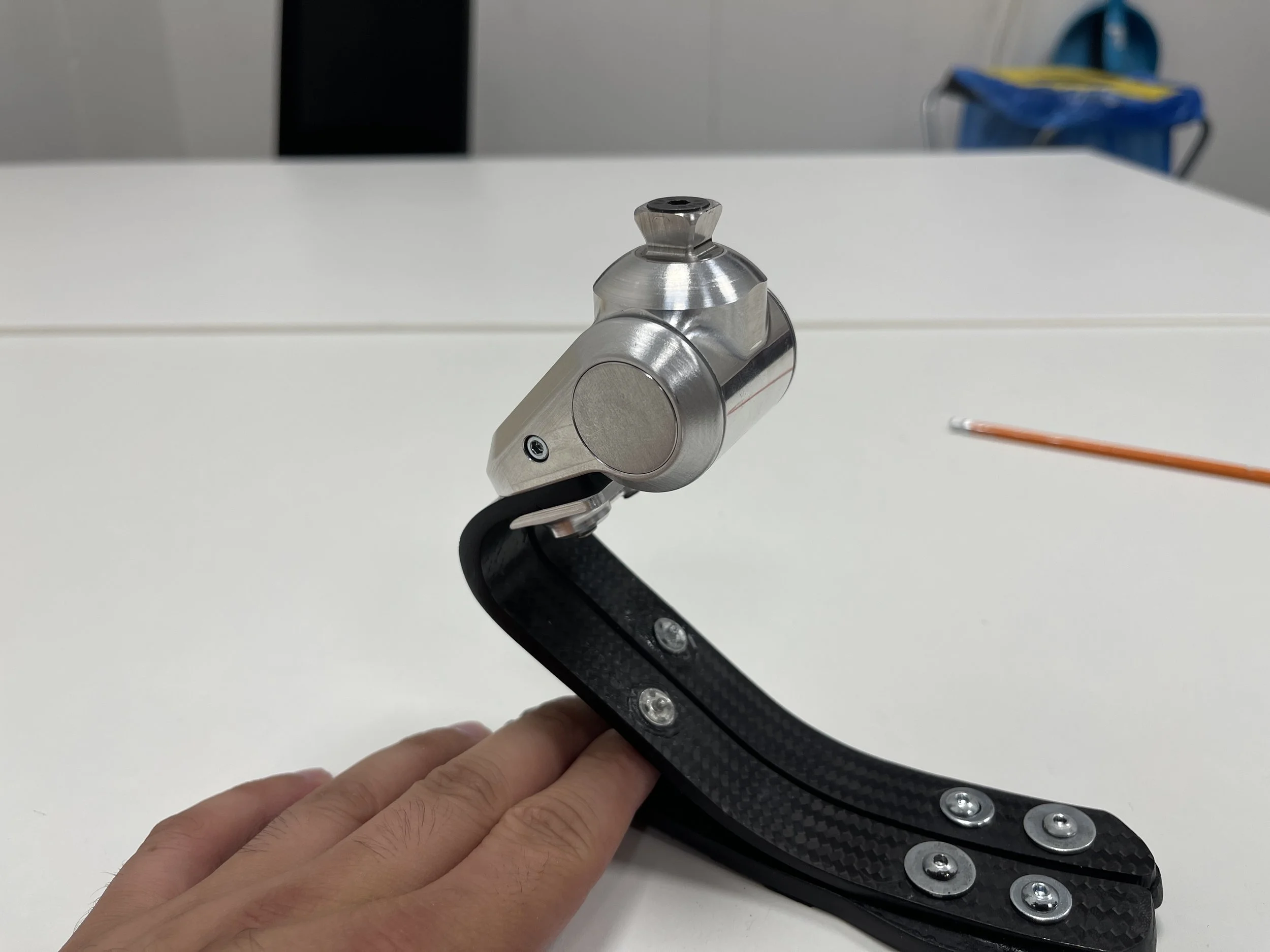

Gyromotics ArcX Junior ankle

This project was part of my graduation thesis. I was challenged to design an ankle mechanism for children that is small, strong and easy to use.

The objective? Allow children to focus on play by having the same benefits the ArcX users have with an ankle mechanism.

The mechanism that makes the ankle work is still a secret I have to keep. However, this project laid the foundation of what later developed into Gyromotics Nova.
